Info Needed..!!!

[Weescotty]

Looking for the dimensions of an -

AN/AXQ-14 Data Link Pod

Feet or preferably metres.

Cheers

edit - If possible also for an AN/ZSW-1 Data Link Pod

[MIKE JG]

Google isn't much help I see. I hate having to guess dimensions of parts like that.

Is that what is on the centerline of this Strike Eagle in this picture??



There have been some interesting loadouts at Red Flag this past week.

[LEBTowerGuy]

Mike,
That appears to be an AN/ASQ-236 Radar Pod.

http://www.f-15e.info/joomla/en/compone ... -radar-pod

[DaleRFU]

I'm not sure on the size but you could try and contact IRIS or MILVIZ who both made flyable models for FSX. They may know

[Weescotty]

Very little info out there on these two...
But - I found a spare parts list that listed something as 130 inches x 20 inches.
Looking at the ASQ that is also the same dimensions.
So fingers crossed going with those sizes!

[eli]

These may not be what you are liiking for but I do have some dimensions:

AN/AAQ-13 Lantern Navigation Pod 451 lbs. - 12" diameter - 6.5' length

AN/AAQ-14 Lantern Targeting Pod 530 lbs. - 15" diameter - 8.2' length

These are from the book Modern Air-Launched Weapons by Martin J Dougherty (one of those sale books you see near the calendars in Barnes & Noble)

Hope you find this helpful.

Tom Eli

[Weescotty]

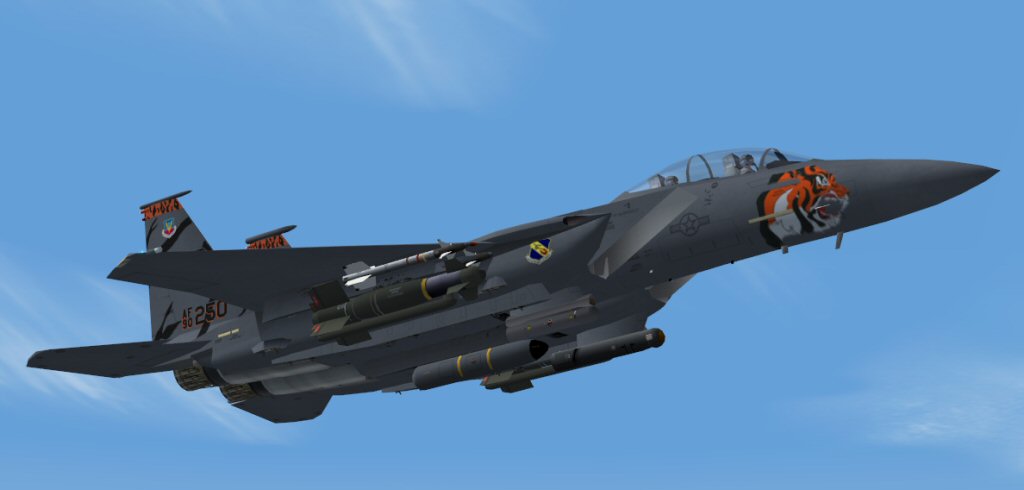

Thanks for all the help/suggestions.
Think I got it....

[f4nutter]

i think you have

[DaleRFU]

Looking very slick
